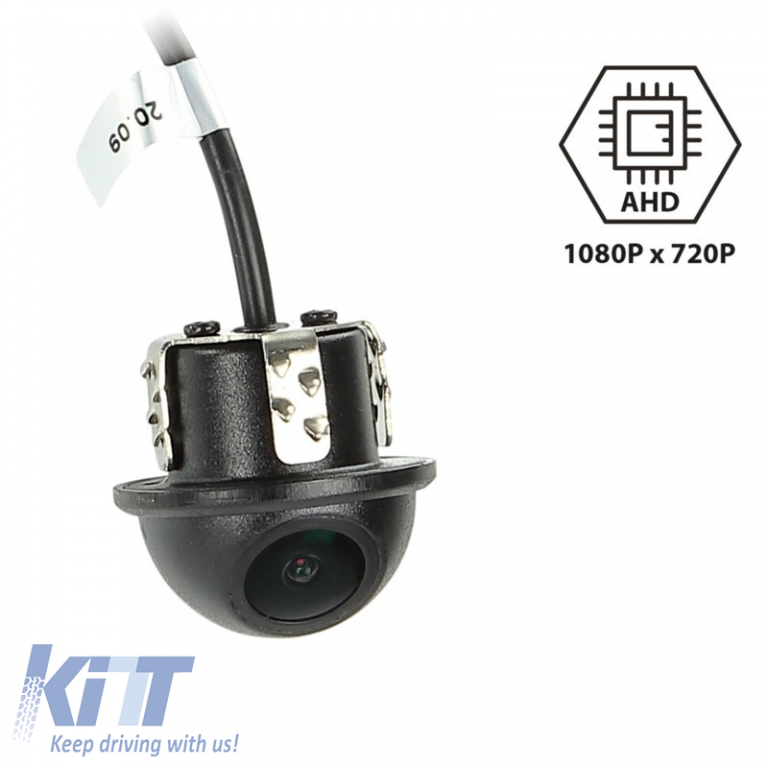

Universal Reverse Car Van Truck AHD Camera 170° Sub Construction Mount ACV 772000-6002

Description

Universal Reverse Car Van Truck AHD Camera 170° Sub Construction Mount ACV 772000-6002
Characteristics:

• only suitable for AHD monitors
• AHD universal rear view camera
• Design: round
• Mounting type: substructure
• With orientation lines / mirroring function
• Construction: plastic with retaining clips
• Color: black
• Extras: Orientation lines via jumper / mirroring function via jumper
• Sensor type: 1/2.8" AHD
• Image system: NTSC color
• Effective pixels: 1080 x 720
• Lens: mm / F
• Lux: 0.03
• Resolution: TV lines
• Lens angle: diagonal 210°
• Viewing angle: horizontal 170° vertical 120° +5°
• Dust and water resistant: IP69K
• Connection: 4 pin acv system plug Ø5.2mm
• Operating voltage: +3V DC
• Supply voltage: +12V / +24V DC > with voltage converter
• Current consumption: 100mA
• Operating temperature range: -20°C - 77°C
• Storage temperature: -40°C - 85°C
• Dimensions: H 30mm / 17mm - 30.5mm

Note:
- acv cameras are suitable for continuous operation
- Before installation > check the viewing angle and camera alignment at the installation location using a test monitor
- Camera operating voltage: +3V
- Camera supply voltage: +12V / +24V
- Connection without the +3V voltage converter included in delivery will damage the camera
- Connection: red: +12V / +24V switched, load-stable fused, black: body ground direct/GND
- Cinch(m) yellow: video
- Jumper: green: activate/deactivate orientation lines, white: activate/deactivate mirroring function
Product Info
Color: Black
Including: Drill
Including: Mounting Screws
Including: Wiring Kit
Number of Pieces: 1 Piece
Position: Rear
Universal | Universal | Universal
