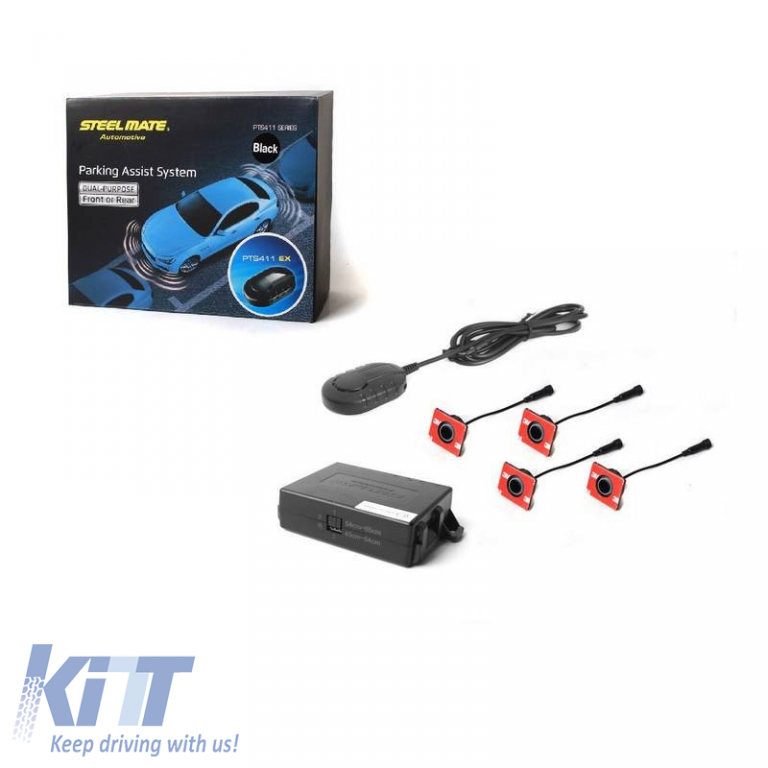

Parking Sensor PDC with 4 Internal Sensors 16mm Black with Buzzer OEM Steelmate PTS411EX OEM

Description

Parking Sensor PDC With 4 Internal Sensors 16mm Black With Buzzer OEM Steelmate PTS411EX OEM

Parking assistant STEELMATE with the option to install as Rear or Front, with 4 flush adjustable black sensors and buzzer. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity setting, learning function, buzzer with adjustable volume and tone frequency added. The unit is designed for 12V/24V on board voltage cars. The length of the wires to the sensors is 2.3 m.

When installing the parking assist in the front bumper, it is necessary to use EXT CABLE KIT extension cables.

System Description:

sensors with fixed assembly to the bumper
fast obstacle detection
sound alarm (beeps changing frequency) indicates the position of obstacles
excellent coverage of the entire area behind or before the vehicle
when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
auto detection (automatic identification of the defective sensor)
excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
mounting hole 16 mm

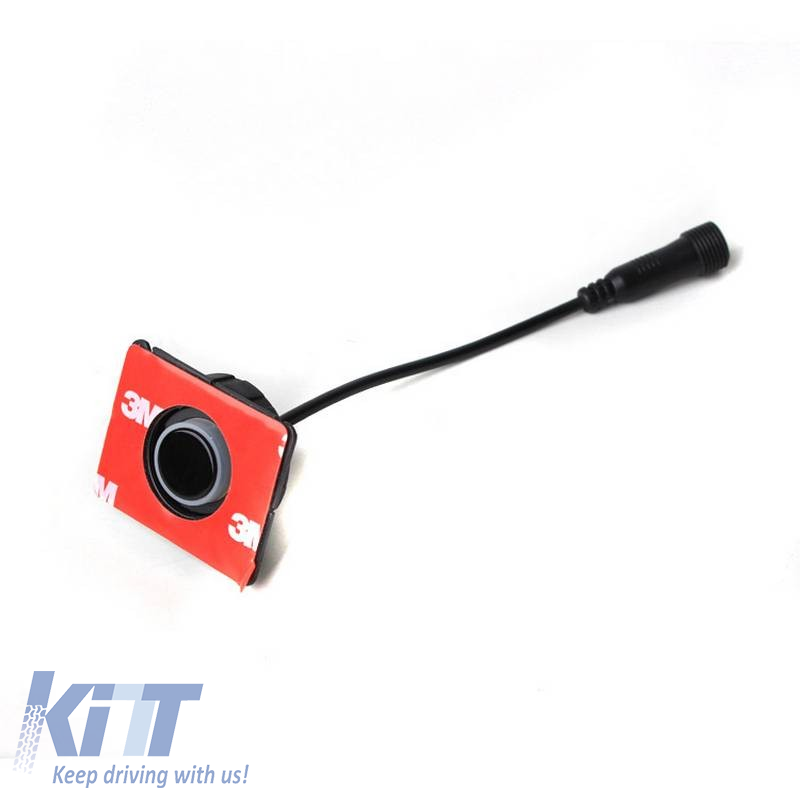

sensors supplied with 10 cm length cable and waterproof connector that ensures easy replacement if necessary
the length of the wires to the sensors is 2.3 m
adjustable volume directly on the buzzer body (3 levels)
adjustable frequency directly on the buzzer body (2 levels)
adjustable sensitivity of the sensors on the control unit (2 levels)
the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
with additional ACC wire (pink wire) for stable power supply (optional connection)
control unit is not waterproof, must be installed in dry place
Note: The control unit contains a 3 PIN connector for display connection, display with old 8 PIN connector is not suitable for!

Product Info
Color: Black Mat
Including: Buzzer
Including: Main Unit
Including: Sensors 16mm
Including: Wiring Kit
Material: Plastic
Material: Waterproof
Position: Front
Position: Rear
Volt: 12 Volt
Volt: 24 Volt
Universal | Universal | Universal
