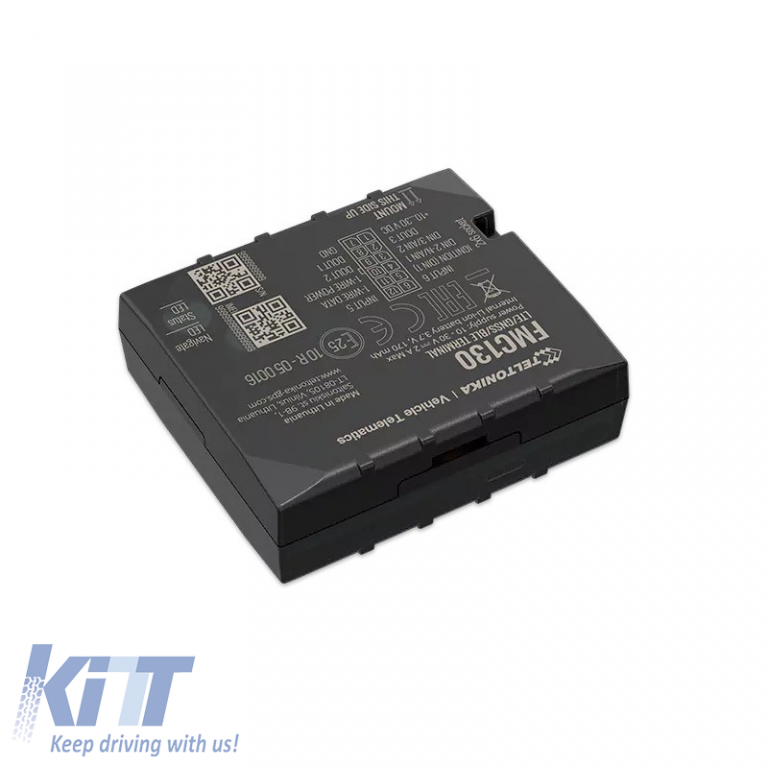

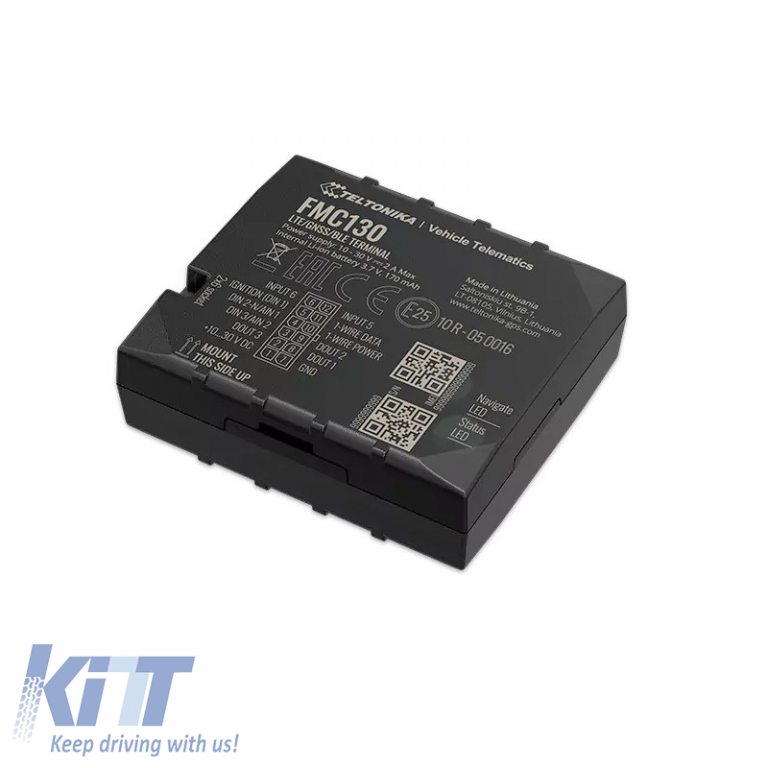

Gps Tracker 4G suitable for Auto / Trucks Teltonika FMC 130 Canbus
Module
Name FMC130-ME1: MeiG SLM320-E1 with Teltonika TM2500 FMC130-ME3: MeiG SLM320-E2 with Teltonika TM2500 FMC130-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
Data transfer LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM:GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support : SMS (text/data) Transmit power Class 4 for GSM850/900: 33±2dBm Class 1 for GSM1800/1900: 30±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm
Power
Input voltage range : 10-30 V DC with overvoltage protection Internal Back-up battery : 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) Internal fuse : 3A, 125V Power consumption At 12V < 250 mA Max. (with full Load / Peak): At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 16 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 33 mA (nominal with no load) At 12V < 250 mA Max. (with full Load / Peak)
Bluetooth® Technology
Specification : 4.0 + LE Supported peripherals : Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Physical specification
Dimensions : 65 x 56,6 x 20,6 mm (L x W x H) Weight : 61 g
Operating environment
Operating temperature (without battery) : -20 °C to +85 °C Storage temperature (without battery) : -20 °C to +85 °C Operating temperature (with battery) : -20 °C to +40 °C Storage temperature (with battery) : -20 °C to +45 °C Operating humidity : 5% to 95% non-condensing Ingress Protection Rating : IP41 Battery charge temperature : 0 °C to +45 °C Battery discharge temperature : -20 °C to +60 °C Battery storage temperature : -20 °C to +45 °C for 1 month / -20 °C to +35 °C for 6 months
Interface
Digital Inputs : 3 Negative Inputs : 1 (Digital Input 2) Impuls Inputs : 2 (Digital Input 1, Digital Input 2) Digital Outputs : 3 Analog Inputs : 2 CAN Adapter Inputs : 1 1-Wire : 1 GNSS antenna : Internal High Gain Cellular antenna : Internal High Gain USB : 2.0 Micro-USB LED indication : 2 status LED lights SIM : Micro-SIM or eSIM Memory : 128MB internal flash memory
Features
Sensors : Accelerometer Scenarios : Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming (Jamming detection feature supported only on hardware with SLM320-E and SLM320-LA)
