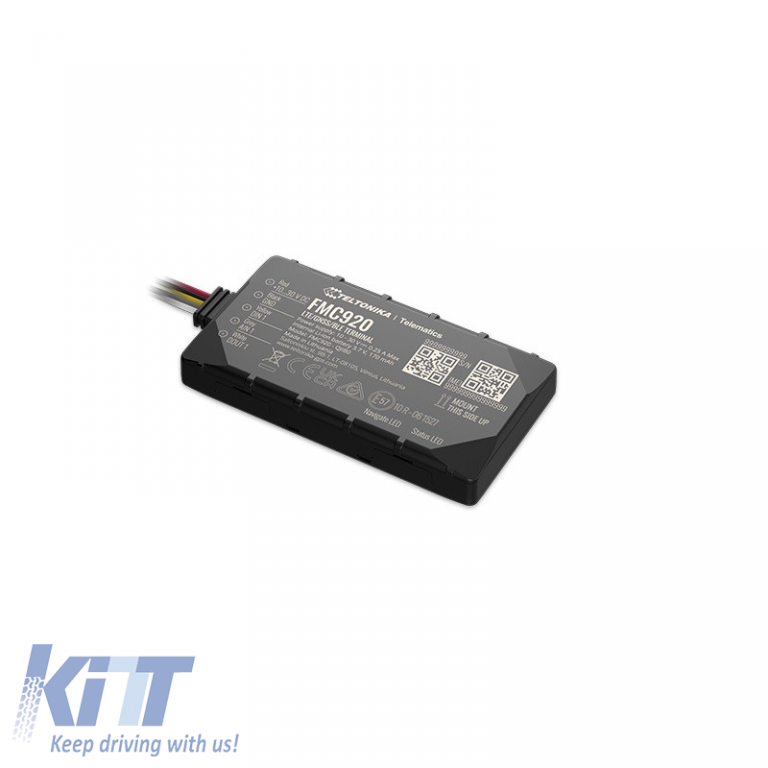

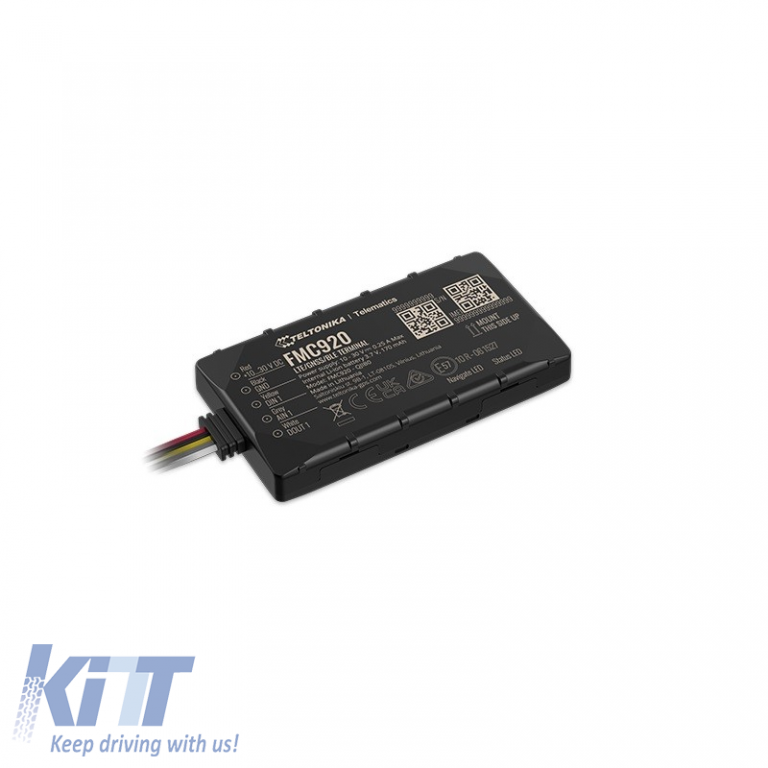

Gps Tracker 4G suitable for Auto / Moto Teltonika FMC 920

Description

Gps Tracker 4G Suitable for Auto / Moto Teltonika FMC 920
Module

Name : Teltonika TM2500
Technology : GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS

GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver : 33 tracking channel / 99 acquisition channel
Tracking sensitivity : -165 dBM
Position Accuracy : < 2.5 m CEP
Velocity Accuracy : < 0.1 m/s (within +/- 15% error)
Hot start : < 1 s
Warm start : < 25 s
Cold start : < 35 s

Cellular

Technology : GSM
2G bands : Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer : GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support : SMS (text/data)

Power

Input voltage range : 6–30 V DC with overvoltage protection
Internal Back-up battery : 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse : 3A, 125V
Power consumption :
At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 4 mA (Deep Sleep)
At 12V < 5 mA (Online Sleep)
At 12V < 6 mA (GPS Sleep)
At 12V < 25 mA (nominal)

Bluetooth® Technology

Specification : 4.0 + LE
Supported peripherals : EYE beacon and sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Bluetooth ® LE beacons and sensors support

Physical specification

Dimensions : 79 x 43 x 12 mm (L x W x H)
Weight : 54 g

Operating environment

Operating temperature (without battery) : -40 °C to +85 °C
Storage temperature (without battery) : -40 °C to +85 °C
Operating humidity : 5% to 95% non-condensing
Ingress Protection Rating : IP54
Battery charge temperature : 0 °C to +45 °C
Battery discharge temperature : -20 °C to +60 °C
Battery storage temperature : -20 °C to +45 °C for 1 month / -20 °C to +35 °C for 6 months
Operating temperature (with battery) : -20 °C to +40 °C

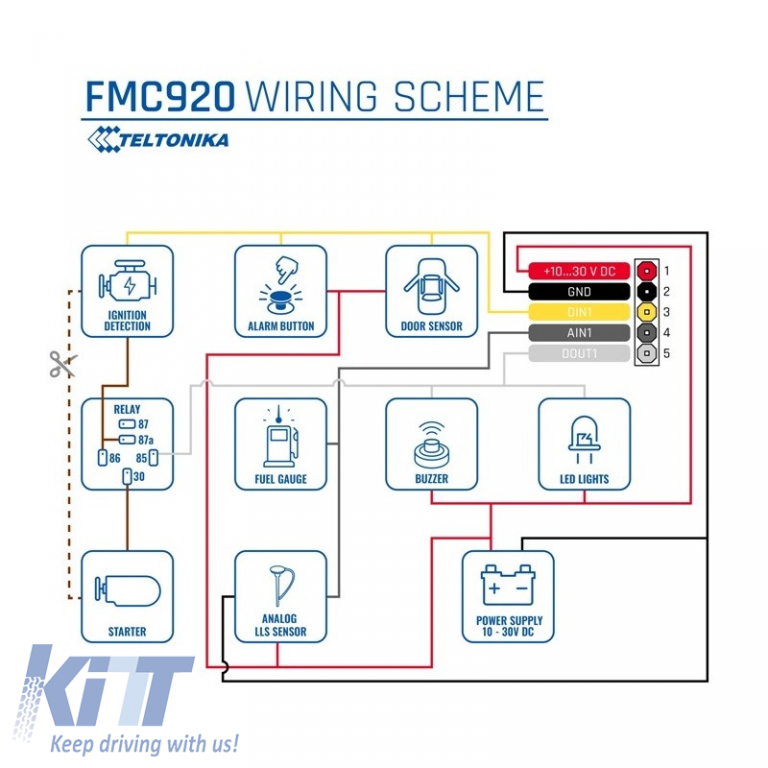

Interface

Digital Inputs : 1
Digital Outputs : 1
Analog Inputs : 1
GNSS antenna : Internal High Gain
Cellular antenna : Internal High Gain
USB : 2.0 Micro-USB
LED indication : 2 status LED lights
SIM : Micro-SIM
Memory : 128MB internal flash memory

Features

Sensors : Accelerometer
