Description
Fuse Cord 3PIN Neoline Suitable for Flash 2K / Dual
For hidden connection and activation of parking mode Flash 2K / Flash 2K Dual

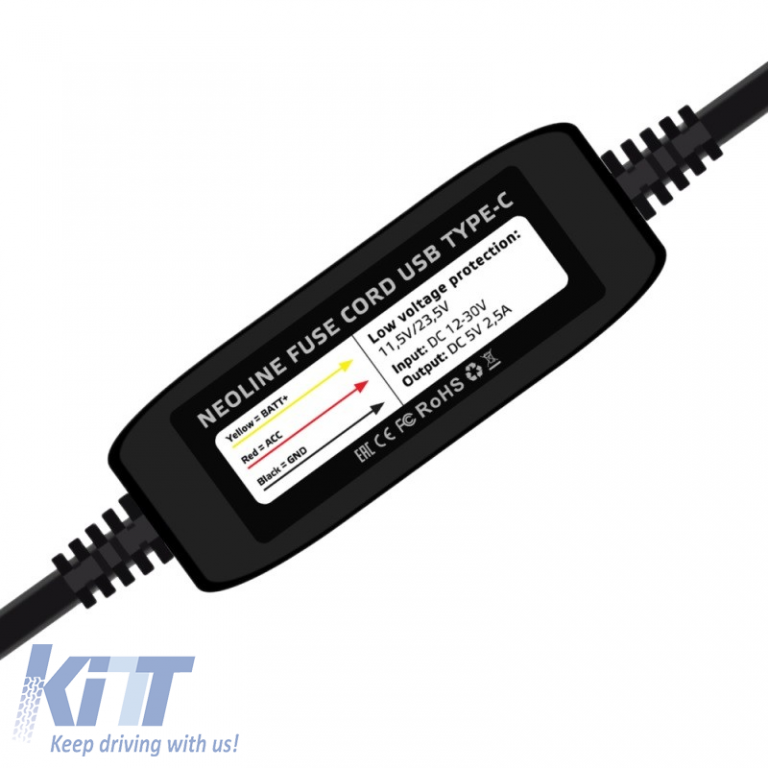

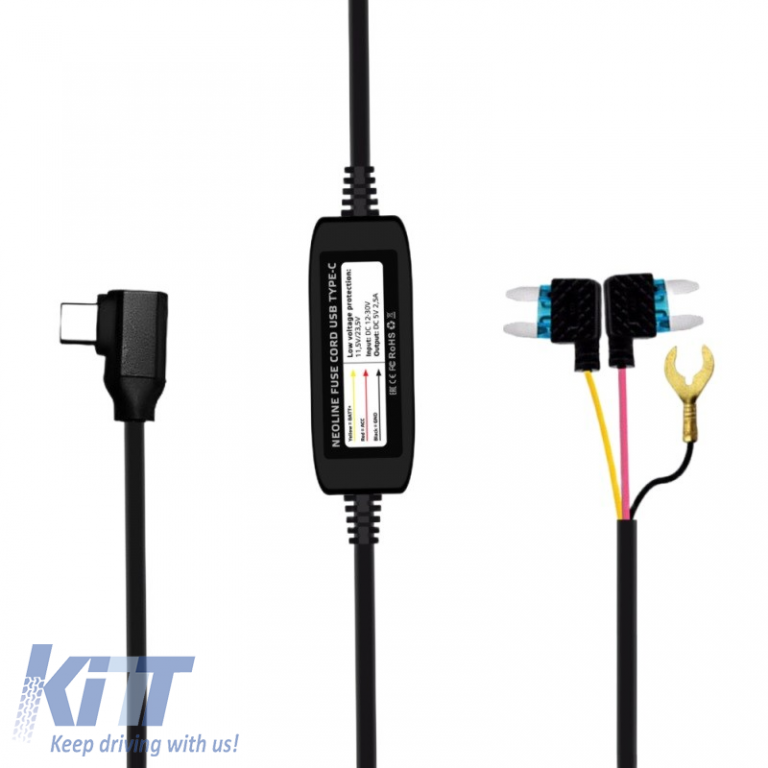

The NEOLINE FUSE CORD for FLASH 2K / FLASH 2K DUAL is designed to connect the dash camera directly to the vehicle’s on-board network.
When connected with the FUSE CORD, “Parking” mode is enabled.
In Parking mode, when the engine is off, the DVR remains active and connected to the vehicle’s electrical network.
If the G-sensor is triggered, video is recorded in the “Parking” folder. The dash camera automatically switches to Parking mode.
This connection does not occupy the cigarette lighter socket.
Specifications
Input voltage: 12 V / 24 V
Maximum output current: 2.5 A
Lower limit of mains voltage: – 11.5 +/- 0.2 V for 12V power supply; – 23.5 +/- 0.2 V for 24V power supply

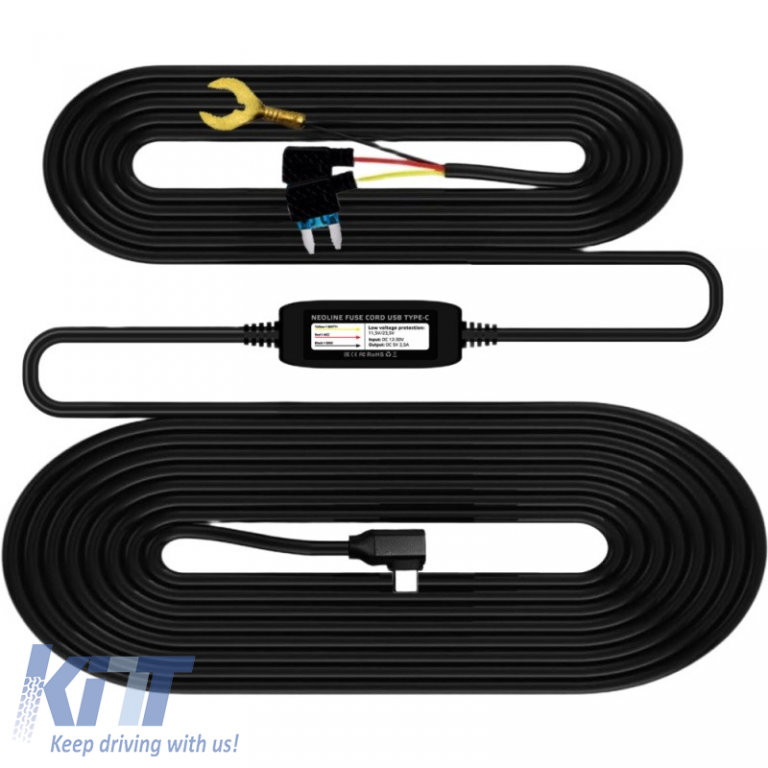

Cable length: 3.5 m
Output voltage: 5 V
Power connection: USB Type-C
Maximum limit of mains voltage: 30 V
Cable fuse size – mini
Universal | Universal | Universal
