Description
Front Parking Assist Sensor PDC With 4 Sensors 18.5mm Black Mat With LCD Screen Steelmate PTS410M5-F
Front parking assistant Steelmate with LED display M5 two-colour diodes, includes new control unit that allows you to adjust the sensitivity in 2 levels, and to adjust the delay off time. The system is designed for installation in the front bumper of the vehicle.
Parking assist system is an ultrasonic distance monitoring system. It electronically detects the area in front of your vehicle while parking, and alerts you if the system detects an obstacle. The system will show the accurate distance in meters. This product is 4-sensor systems for front bumper protection. They can also work as 2-sensor systems. They are ideal for cars with front metal bar.
System Description:
sensors with fixed installation in the front bumper
fast detection of obstacles
acoustic (changing frequency beeping) and visual notification of the obstacle position
if the obstacle is at a distance of 30 cm from the vehicle, it signalling by a continuous tone

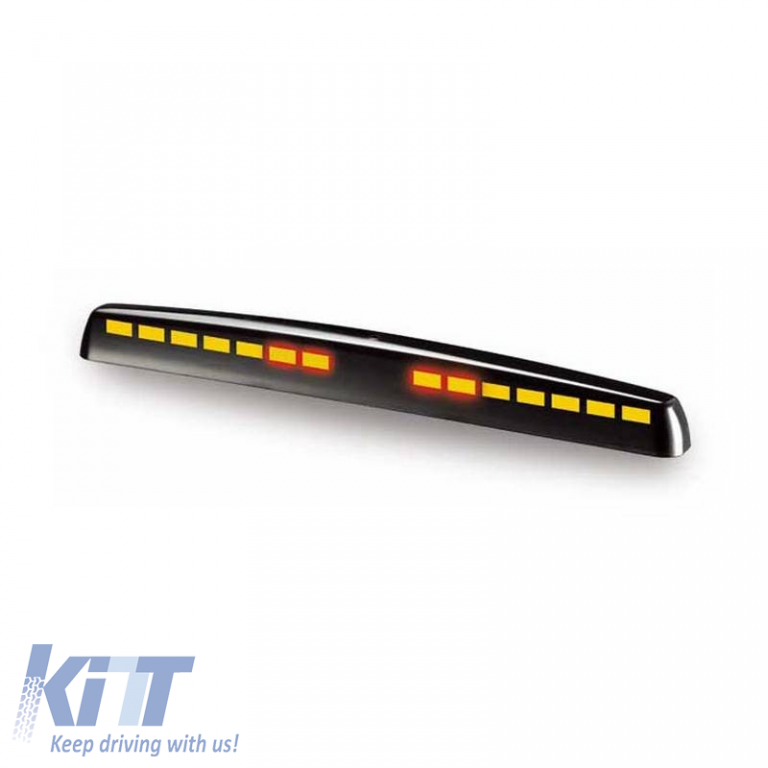

2 colour M5 display with digits
control unit with switches to set the sensitivity and delay time off
2 sensitivity levels (high and low)
delay time for 8s or 20s after releasing the brake pedal
self test function
cable length to the sensor 4.5 m
excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°

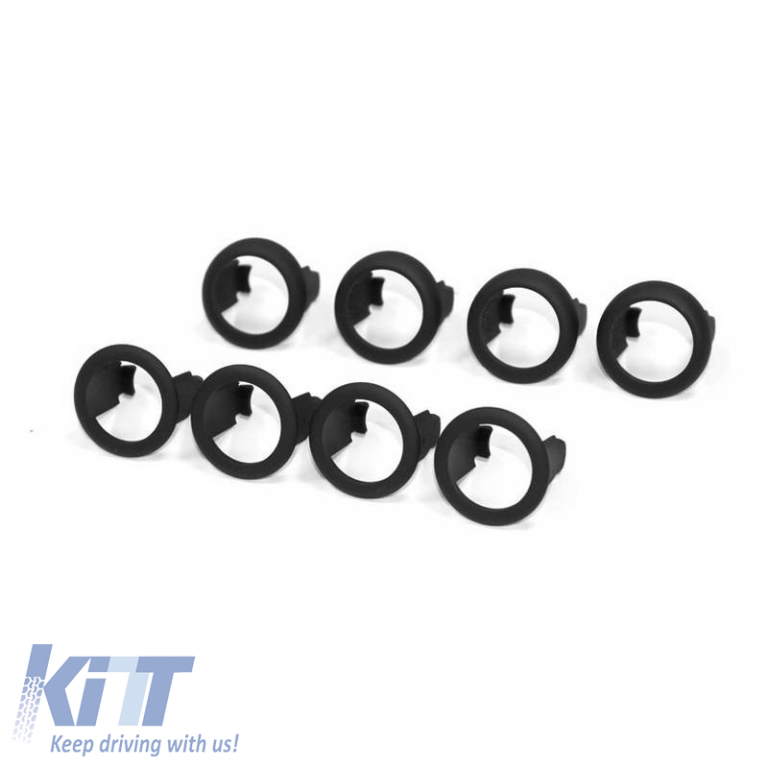

angle washers in the package 0°, 4°, 10°
sensors core diameter 14 mm
sensors diameter 18.5 mm

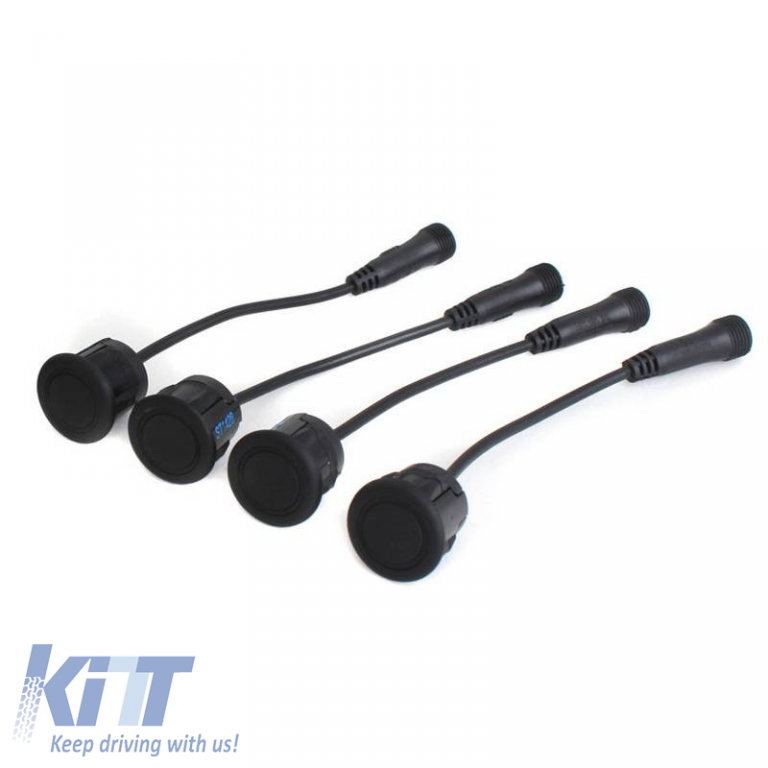

sensors with 10 cm cable with waterproof connector which ensures easy replacement of the sensor, if necessary

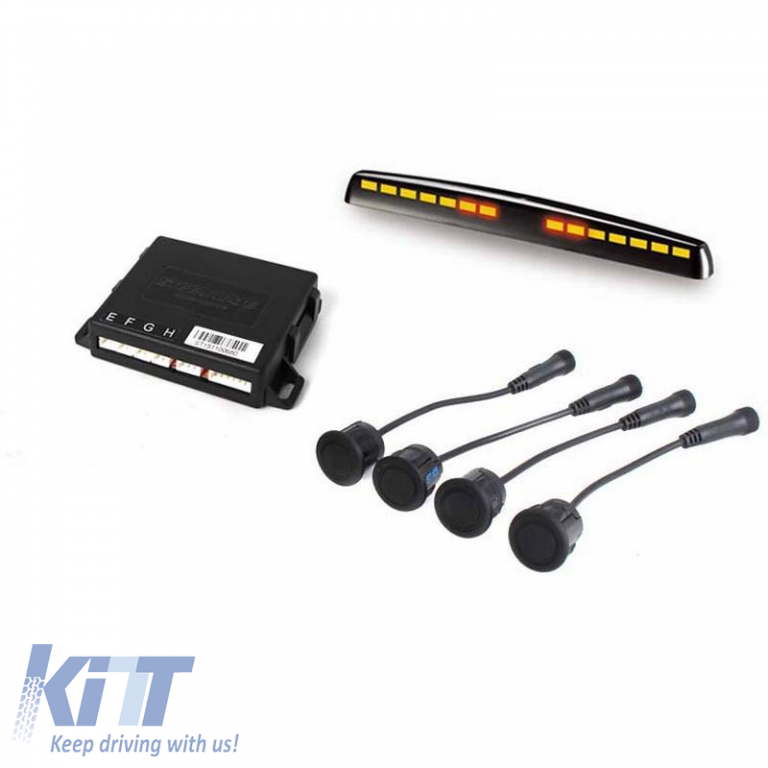

Contents:
parking sensors 4 pieces
angle washers
control unit
display
cabling
drill
instruction
warranty card
Product Info
Color: Black Mat
Including: Buzzer
Including: Indicator
Including: Main Unit
Including: Sensors 18mm
Including: Wiring Kit
Material: Plastic
Material: Waterproof
Position: Front
Volt: 12 Volt
Universal | Universal | Universal
