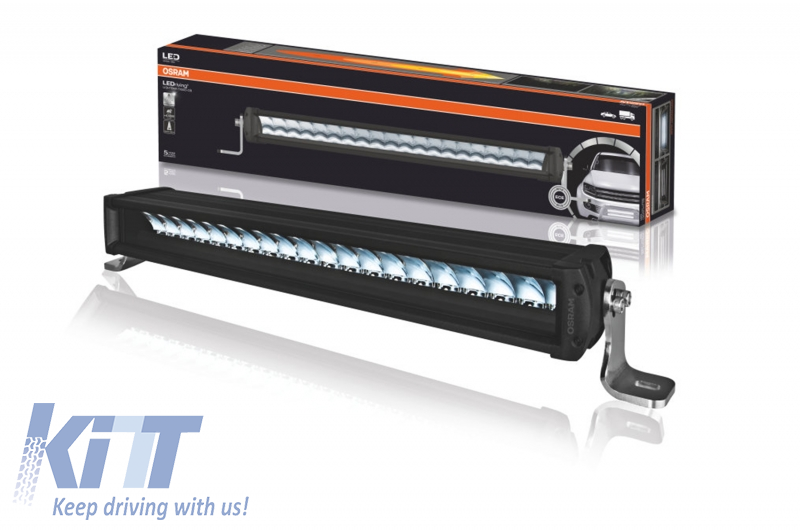

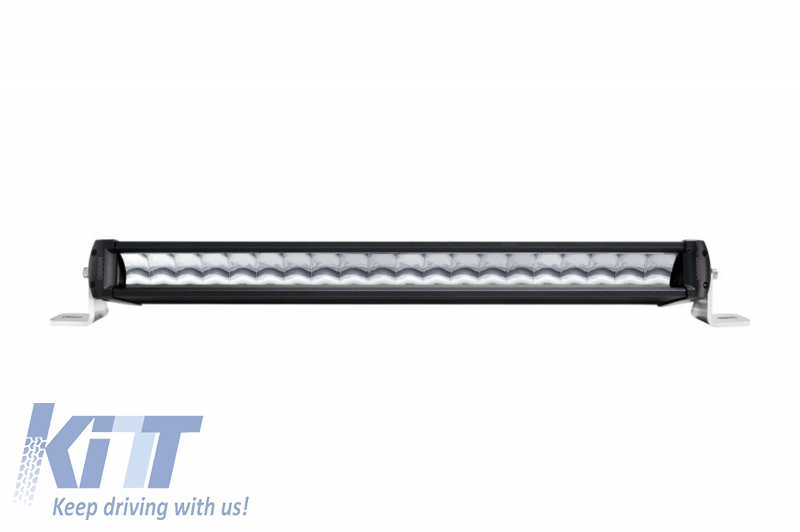

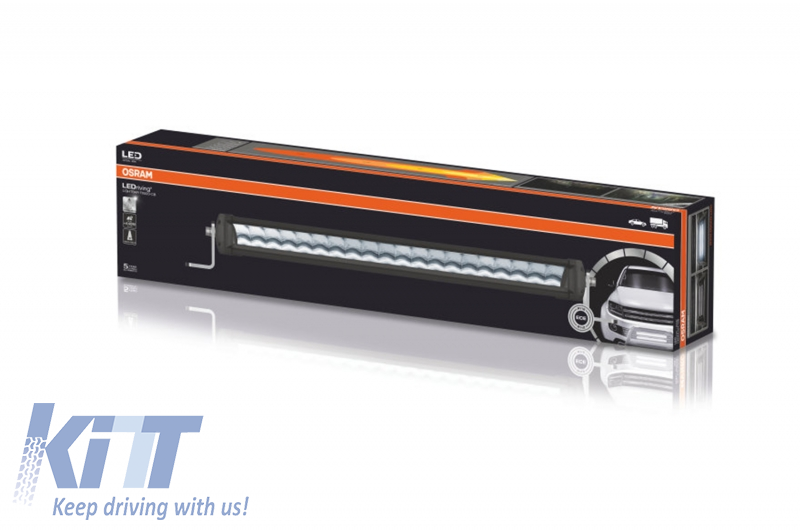

LEDriving LIGHTBAR Lights FX ECE R10, R115 one piece

LEDriving LIGHTBAR Lights FX ECE R10, R115 one piece


Code: LEDDL104-CB

Manufacturer: Osram

187.00 147.00

Amount :

Availability:

Cart was updated. click here for details.







Intro

These LEDriving lightbars have improved illumination thanks to high brightness and are designed in a robust and compact way with a long lifetime.

Suitable for

Universal Ledriving lightbar

Description

The LEDriving LIGHTBAR FX500-SP/-CB belong to the Functional Series and feature a fully ECE compliant auxiliary high beam. OSRAM offers the product in two versions: Spot (SP) and Combo (CB). The Spot beam pattern provides an improved far field illumination up to 450 meters with a 5°beam angle. The Combo beam pattern shows an improved far and near field illumination providing an up to 440 meters light beam with a 5°beam angle. The LED lights in Cool White generate an intense light up to 6000 Kelvin and are available for 12 and 24 volt vehicles. They are designed in a robust and compact design with a long lifetime of up to 5000 hours thanks to the integrated driver and thermal management system. Due to extremely robust polycarbonate lens, the lights endure heavy-duty applications and feature multiple voltage protection. OSRAM offers a 5 year guarantee on the LEDriving LIGHTBAR FX500-SP/-CB. Refer to www.osram.com/am-guarantee for precise conditions. Driving lights must be installed in pairs for 12/24 V-vehicles.


Electrical data
Nominal voltage
12/24 V

Nominal wattage
70 W

Test voltage
13.5 V

Photometrical data
Luminous flux
5500 lm

Color temperature
6000 K

Light distance at 1lx [PIM]
440 m

Dimensions & weight
Height
77.0 mm

Width
94.0 mm

Length
655.0 mm

Product weight
2100.00 g

Lifespan
Lifespan Tc
5000 h

Connector to lamp
DT Connector

Product type (off-road vs. on-road)
On-road

Approval marks - approval
E4 approval

Type of protection
IP67

Logistical data
Commodity code
851220009000

Packaging information
Dimension l x w x h

1 piece x 638mm x 137mm x 90mm 2338.00g 7.87dm³
4 pieces x 655mm x 295mm x 208mm 10166.00g 40.19dm³

Fitting and Installation

Fitting instructions included.

Package Contains

Dimension l x w x h

1 piece x 638mm x 137mm x 90mm 2338.00g 7.87dm³

Certificates

ECE category
ECE R10, R115
These are high quality aftermarket parts.

General specs

Product type Tuning Car Parts Headlights Assemblies Lamps Lights
Placement on car Front
Left
Right
Brand KITT Tuning

Class 1

Features Position lights
Not included Fitting instructions
Unit quantity Unit
